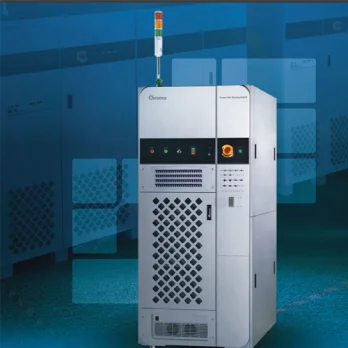

BATTERY PACK POWER HIL TESTBED

Chroma ATE introduces the 8610 Battery Pack Power HIL Testbed, designed for comprehensive testing of electric vehicle (EV) battery systems and components. This versatile system supports testing of battery modules, battery management systems (BMS), and cooling/heating systems. Various hardware options are available for integration, such as a DC power supply, battery charge/ discharge system, digital meter, Hi-Pot tester, and short-circuit and overvoltage protection devices. Designed for development of battery modules and packs, the Chroma 8610 testbed features real-time hardware and software with an open architecture, enabling advanced testing capabilities. Besides basic test functions like importing of vehicle driving cycles, CAN signal monitoring, fault injection, insulation measurement, and EV supply equipment (EVSE) charging simulation, the testbed can also execute critical compound scenarios for real vehicles and composite operating conditions with high risk of failure (e.g. physical and communication signal errors during cyclic discharge). This feature-rich toolset greatly improves R&D efficiency by enabling in-depth tests on battery packs before entering the real car validation stage. The 8610 testbed integrates the highperformance Chroma 170X0 series of battery charge/discharge test systems. These systems provide dynamic simulation of battery pack discharging and regeneration under various driving conditions, enhancing testing reliability at the whole-vehicle level. During testing, the Chroma 170X0 will also feed the power output from the battery pack back to the grid to increase energy efficiency and save costs

KEY FEATURES

• Integrated real-time system and FIU  hardware, to simulate fault injection and improve ISO     26262 functional safety testing
• Supports various Simulink real-time models import, to verify on-road battery dynamic charging and discharging through standard driving conditions like NEDC and   WLTP
• Supports CAN, CAN FD, LIN, and RS-485 communication interfaces
• Real-time monitoring of timing sequences, incl. high power relay open/close, initial power   output, CAN signal
• Extensive modular hardware, to ensure test accuracy and repeatability;   expandable according to users' needs
• Supports upper-level automated test software through ASAM XIL and ASAM XIL-MA
• Independent PLC real-time monitoring, to ensure safety during testing
• Integrated DC EVSE charge interfaces, incl. CAN Bus and PLC signals, for various
•  compatibility tests
• Integrated Hi-Pot safety analyzer, to measure and compare battery insulation and grounding status

APPLICATIONS

• Battery pack calibration and verification
• Reliability and durability testing
• Simulation of vehicle driving cycle conditions
• System integration testing
